Pigment Red 242-Red Corimax 4RF

Lista de parámetros de produtos

Índice de cores Nº.	Pigment Red 242
Nome do produto	Corimax Red 4RF
Categoría do produto	Pigmento orgánico
Velocidade da luz (revestimento)	7
Resistencia ao calor (revestimento)	180
Velocidade da luz (plástico)	7-8
Resistencia ao calor (plástico)	280

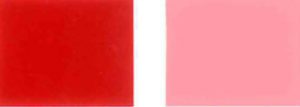

Cor
Distribución de tonalidades

Aplicación ：

Recomendado para pinturas para automóbiles, pinturas industriais, revestimentos en po, pastas de impresión, PVC, goma, PS, PP, PE, PU, tintas a base de auga, tintas solventes, tintas UV
Suxerido para revestimentos arquitectónicos, revestimentos de bobinas, tintas compensadas.

Pigment Red 242 has a yellowish red or large red phase, and is excellent in solvent resistance and acid / alkaline resistance. It is mainly used for coloring of plastics such as PVC, PS, ABS, and polyolefins. It is heat-resistant to 300 ° C (1 / 3SD) in HDPE, but it affects dimensional deformation. It is suitable for the coloring of raw pulp of polypropylene and resistance to migration in soft PVC. It has medium tinting strength; it is also recommended for coatings, automotive coatings, anti-glazing paints, and heat-resistant 180 ° C; for high-end printing inks, such as PVC film and metal decorative printing inks, laminated plastic films, etc.

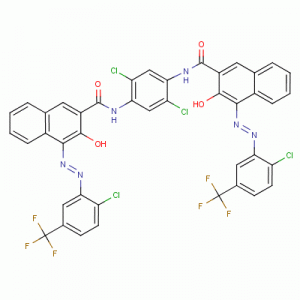

Estrutura molecular:

English name: C.I.Pigment Red 242
Alias inglés: Pigmento vermello 242; PR242; Sandorin Scarlet 4RF; 2-Naphthalenecarboxamide, N, N '-(2,5-dichloro-1,4-phenylene) bis- [4-[[2-chloro-5- ( trifluoromethyl) phenyl] azo] -3-hydroxy-3-hydroxy-; (4Z, 4'E) -N, N '-(2,5-dichlorobenzene-1,4-diyl) bis (4-{[2- chloro-5- (trifluoromethyl) phenyl] hydrazono} -3-oxo-3,4-dihydronaphthalene-2-carboxamide); 4- [2-chloro-5- (trifluoromethyl) phenyl] azo-N- [2,5- dichloro-4-[[4- [2-chloro-5- (trifluoromethyl) phenyl] azo-3-hydroxy-naphthalene-2-carbonyl] amino] phenyl] -3-hydroxy-naphthalene-2-carboxamide; N, N '-(2,5-dichloro-1,4-phenylene) bis [4-[[2-chloro-5- (trifluoromethyl) phenyl] azo] -3-hydroxynaphthalene-2-carboxamide] CAS number: 52238-92-3
EINECS number: 257-776-0
Molecular formula: C42H22Cl4F6N6O4
Molecular weight: 930.4643
Density: 1.57g / cm3
Boiling point: 874.8 ° C at 760 mmHg
Flash point: 482.8 ° C
Vapor pressure: 2.96E-32mmHg at 25 ° C

Principio sintético: 2-chloro-5-trifluoromethylaniline is added to a hydrochloric acid medium, and an aqueous solution of sodium nitrite is added to carry out the diazotization reaction; the diazonium salt is reacted with 2-hydroxy-3-naphthoic acid to produce Mono-azo dyes are reacted with sulfoxide in o-dichlorobenzene to be converted into acid chloride derivatives; and then subjected to a condensation reaction with 2,5-dichloro-1,4-phenylenediamine to produce crude azo condensation products, CI pigment red 242 was prepared by pigmentation.
